Pulsarlube S

Pulsarlube S

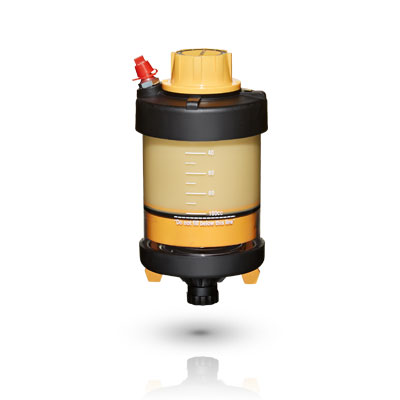

SERIES S100 : Ø67mm (2.64") x 129mm (5.08")(H)

The Pulsarlube S is an advanced spring type lubricator operates with the spring at the bottom and an upward piston movement, which dramatically reduces the effects of oil separation that have plagued traditional spring type lubricators.

Download User Manual English and Flyer English for Pulsarlube S100

Features

Design The upward piston movement reduces oil separation and the possibility of grease hardening	Easy to Refill Easy to refill grease on site using grease nipple
Control Knob Grease dispensing rate can be easily controlled by using the control knobs	Pre-Filled Available pre-filled

Products info

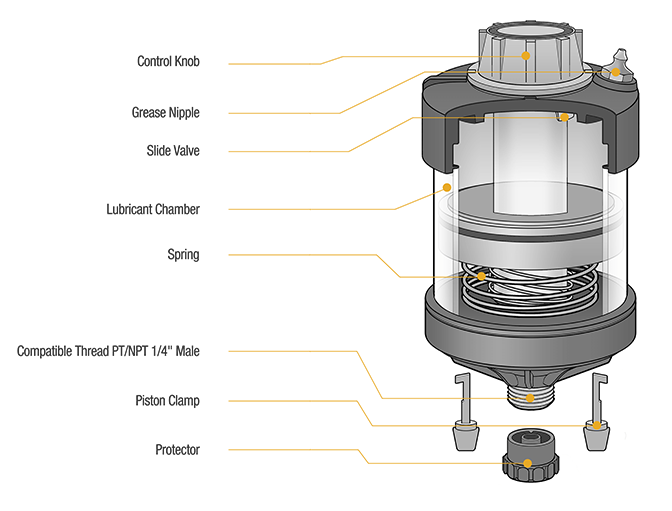

Cross section

Spec and certifications

Technical Specifications

Spec	Description
Grease Capacity	100ml (refillable)
Operating Method	Spring
Operating Pressure	N/A
Operating Temperature	-20℃~100℃ (-4°F~212°F)
Dispensing Periods	5 Dial Settings
Remote Installation	N/A
Multi-Point Installation	N/A
Packaging	10 Units/Case

Product certifications

Certification	Description
IP Code	N/A
Etc.	N/A

Installation

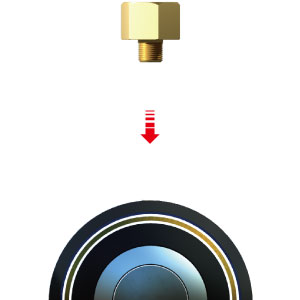

Reducer

reducer

Part No.	Description
A003	Reducer, 3/8"F x 1/8"M Adaptor (Steel)
A004	Reducer, 1/4"F x M8 x 1.25 M Adaptor (Steel)
A005	Reducer, 1/4"F x 1/8" M Adaptor (Brass)

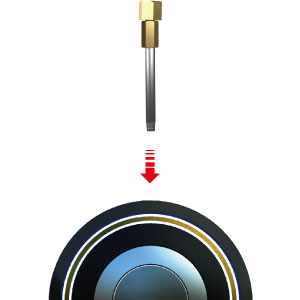

Socket + Pipe + Reducer

socket pipe reducer

Part No.	Description
A011	Socket, 1/4"F x 1/4"F Adaptor (Brass)
A012	Socket, 1/8"F x 1/8"F Adaptor (Brass)
Part No.	Description
A121	Pipe,1/4”M x 1/4”M x 50mm (Steel)
A122	Pipe,1/4”M x 1/4”M x 100mm (Steel)
A123	Pipe,1/4”M x 1/4”M x 150mm (Steel)
A124	Pipe,1/4”M x 1/4”M x 200mm (Steel)
Part No.	Description
A106	Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)
A107	Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)
A108	Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)
A109	Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)

45˚ Elbow

socket pipe reducer

Part No.	Description
A023	45° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A024	45° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

90˚ Elbow

socket pipe reducer

Part No.	Description
A019	90° Elbow, 1/4”F x 1/4”F Adaptor (Brass)
A020	90° Elbow, 1/8”F x 1/8”F Adaptor (Brass)
A021	90° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A022	90° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

If the bearing lube point is NPT, use the thread converter (A243) to convert thread metric to inch for bearing zerk (USA only)

Comments

All Parts should be assembled tightly with PTFE tape.
For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
If the bearing lube point is NPT, use the thread converter.
