Pulsarlube V

Pulsarlube V

The Pulsarlube V is an easy-to-program gas type lubricator which offers an informative LCD display.

The Pulsarlube V automatic grease lubricator operates based on the proven technology of electrochemical reaction which generates inert Nitrogen (N2) gas through the systematic use of an electrolyte and electrical energy.

It is designed to help users easily set the dispensing rate by use of the microprocessor and LCD. The Pulsarlube V controls the electrolytic reaction for the best dispensing rate and dispenses a precise certain amount of grease at the set rate, suitable for most industrial applications. This product is an intrinsically safe product, certified as Ex ia llC T4 for use in hazardous areas.

Download User Manual English , Flyer English and SDS english

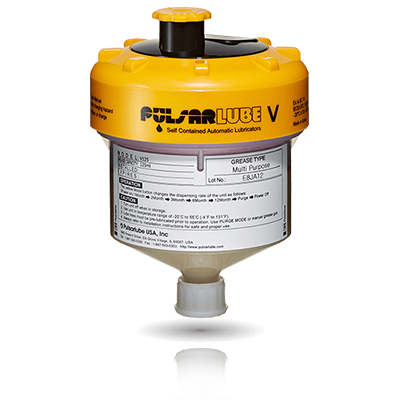

SERIES V125: Ø97mm(3.83") x 125mm(4.92") (H)

‹
›
Tööstusseadmete eksperdid
Võtke meiega ühendust

Tooted

Tooted

Features

Item 1
Certified

Certified CE, ATEX, UL for use in hazardous areas
Item 2
System

8-bit microprocessor controlled to ensure the most accurate dispensing rate
Item 3
Easy

Easy to reprogram at any time with a press of a button
Item 4
LCD

Easy to program with built-in LCD and simple button controls

Products info

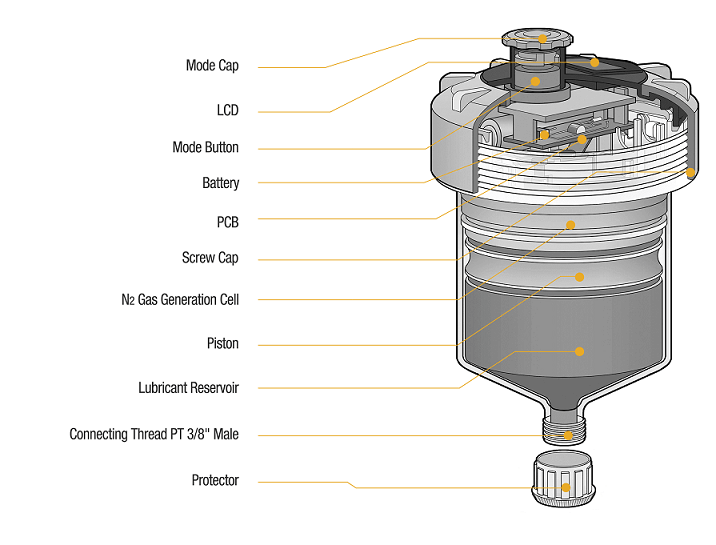

Cross section

Spec and certifications

Technical Specifications

Spec Description

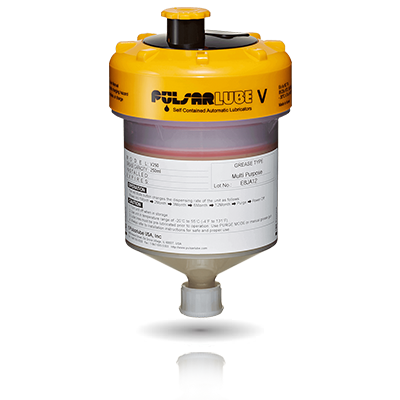

Grease Pouch Capacity 125ml/250ml (disposable)
Gas Type Electrochemical reaction (Nitrogen gas)
Operating Pressure Max. 5bar (73psi)
Operating Temperature -20˚C~55˚C (-4˚F~131˚F)
Dispensing Periods 1, 2, 3, 6, 12 month & Purge (P)
Remote Installation Max. 1m (3.3ft) with O.D. Ø8 tube
Multi-Point Installation N/A
Packaging 10 Units/Case

Product certifications

Certification Description
IP Code IP68
ATEX Ⅱ 1 G / ia Ⅱc T4
UL Cl.I, Div. 1, Gps A, B, C, D
IECEX ia ⅡC T4 Ga
KCs ia ⅡC T4
MSHA Approval No. 18-A180003-0
CE / Etc. CE 0344

Installation

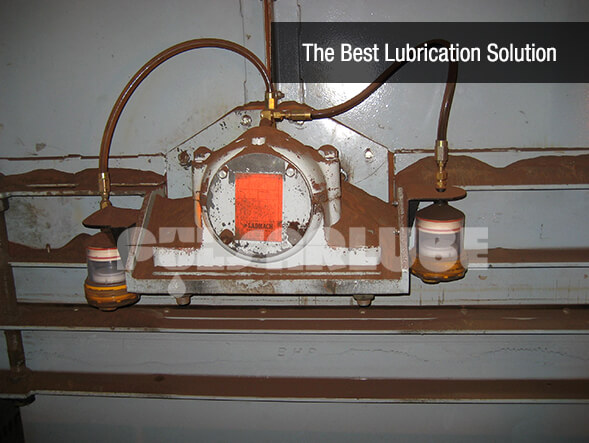

Direct mount Single point remote installation

Reducer

reducer
Part No. Description
A001 Reducer, 3/8"F x 1/4"M Adaptor (Brass)
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
A003 Reducer, 3/8"F x 1/8"M Adaptor (Steel)

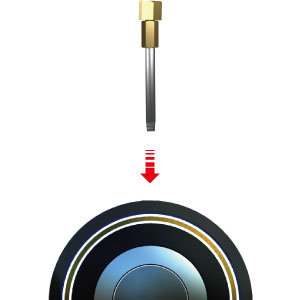

Socket + Pipe + Reducer

socket pipe reducer
Part No. Description
A011 Socket, 1/4"F x 1/4"F Adaptor (Brass)
A012 Socket, 1/8"F x 1/8"F Adaptor (Brass)
Part No. Description
A121 Pipe,1/4”M x 1/4”M x 50mm (Steel)
A122 Pipe,1/4”M x 1/4”M x 100mm (Steel)
A123 Pipe,1/4”M x 1/4”M x 150mm (Steel)
A124 Pipe,1/4”M x 1/4”M x 200mm (Steel)
Part No. Description
A106 Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)
A107 Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)
A108 Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)
A109 Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)

45˚ Elbow

socket pipe reducer
Part No. Description
A023 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A024 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

90˚ Elbow

socket pipe reducer
Part No. Description
A019 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass)
A020 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass)
A021 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A022 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

Comments
  • All Parts should be assembled tightly with PTFE tape.
  • For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
  • If the bearing lube point is NPT, use the thread converter.
